Desk Weight Capacity Calculator | Load & Mounting Estimator
Desk Weight Capacity & Load Stacking Calculator
Why Desktop Material Matters More than The Frame Underneath It
Most desk weight ratings advertise the frame’s capacity, the steel legs and crossbars that hold the whole structure up. Although it isn’t the one that typically fails first, that number is real. The material of the desktop surface, the flat panel to which your hardware is actually attached, determines how much concentrated stress it can withstand before it flexes, cracks, or allows a clamp screw to come loose, making it nearly always the weakest link.
Solid hardwood distributes stress well and resists compression at a clamp point better than almost anything else people build desks from. Because its cross-laminated layers prevent splitting in a way that solid boards occasionally do not, cabinet-grade plywood is comparable. Most laminate desktops sold at big-box stores are made of particleboard and MDF, which are the weakest of the common options because they are essentially compressed wood fiber and glue that further compresses under prolonged clamp pressure. Tempered glass is genuinely fragile at a concentrated edge point, which is precisely what a C-clamp produces, but it is strong under even, distributed weight.
Reading The Results And Matching Hardware To Your Desk
This calculator estimates the distributed weight capacity of your desktop, the amount of evenly distributed static weight it can reasonably support, and a separate, more conservative figure for clamped hardware in particular (a monitor arm or microphone arm doesn’t distribute its load evenly). The safe clamped-hardware number consistently falls well below the total distributed capacity because it concentrates weight and torque at a single, tiny point on the desk’s edge.

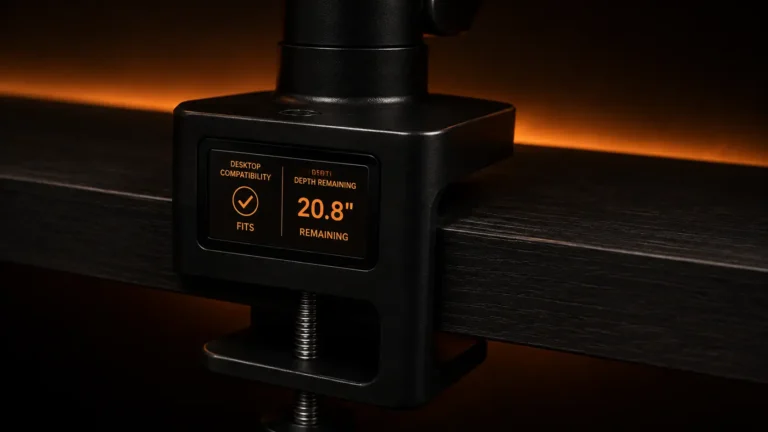

The type of mount you choose affects both the specifications and the results. C-clamp hardware needs a desktop between 0.75 and 2.36 inches thick to hold securely, no matter how strong the material is. Grommet-mount hardware, which uses a bolt through a drilled hole instead of clamping the edge, does not have this thickness limit and usually supports a bit more weight before any problems arise.
Frequently Asked Questions
How much weight can a desk hold with a monitor arm attached?
It is largely dependent on the thickness and material of the desktop, not just the total weight rating of the frame. Since clamp mounting concentrates load and torque at a single point rather than distributing it evenly, keep clamped hardware, such as monitor arms, under roughly 15% of the desktop’s estimated distributed capacity.
Why does my desk sag or flex where the monitor arm is clamped?
If you see sagging where your clamp is attached, it likely means the desktop material is getting compressed from constant pressure. This is common with particleboard or MDF that is less than an inch thick. To solve this, try using a thicker or solid-wood desktop, add a reinforcing plate under the clamp, or use a grommet-mount arm instead.
Is a C-clamp or grommet mount stronger for a monitor arm?
Because a bolt-through drilled material resists pull-out better than clamp friction, grommet mounts typically withstand higher loads before exhibiting wear. This prevents the desktop from slipping or compressing over time. The primary trade-off is that C-clamps are simpler to install and remove.
Can I put a monitor arm on a glass desk?
Not using the typical C-clamp hardware. Even though the same glass panel can support a significant amount of evenly distributed weight without any problems, the concentrated pressure from a clamp screw can chip or crack tempered glass at the edge. The safer option for a glass desktop is a freestanding stand rather than clamped hardware or a grommet-mount arm through a professionally pre-drilled hole.
